HOW CAN I USE THE BLUETOOTH FEATURE?
• This unit has a Bluetooth transmitter. It can transmit audio to an external Bluetooth speaker.
• The PJ308 has built-in full range speakers. However, you can also connect external speakers for
more sound options.
Bluetooth - Pairing to Wireless Speakers or a Sound Bar
NOTE: Bluetooth is OFF by default when the projector first powers ON. Bluetooth can be turned ON or
OFF from the OPTIONS Menu.
1. Enable Bluetooth on the Bluetooth receiver (Bluetooth speaker, Bluetooth soundbar etc.) that
you would like to connect.
2. Power on the projector and make sure the projector's Bluetooth is ON (see note above). The
projector will begin searching for nearby Bluetooth devices to connect to and will automatically
initiate pairing. Note: To eliminate confusion, disable Bluetooth on all receivers to which you
do not wish to connect.
3. When successfully paired, the Bluetooth receiver should indicate it is connected, usually with a
chime or tone. Check the user manual on your Bluetooth receiver for more information.
4. When successfully connected, the projector will display the Bluetooth receiver's (your speaker
or sound bar) name on the top right portion of the Main Menu screen, and sound played from
the projector will be heard through the Bluetooth receiver.
After initial pairing, the projector and the Bluetooth speakers will stay paired unless unpaired manually
by the user or erased due to a reset of either device. If this occurs or you find either unit is unable to
connect, repeat the above steps.
CAN I CONNECT A HEADPHONE OR A SPEAKER TO THIS UNIT VIA AUX CABLE?
Yes, this unit has a Headphone jack (audio out). You can use the included 3.5mm to RCA stereo cable, or
your own 3.5mm Aux cable to connect an external speaker or a headphone to the Headphone Jack on
the projector. The projector will automatically detect the connection and the audio will be heard from
the connected speaker, headphone etc.
Note: The yellow video plug on the included 3.5mm to RCA stereo cable will not be needed in this setup
and will not need to be connected.
The PJ308 has built-in full range speakers. However, you can also connect external speakers or
headphones/earbuds for more sound options

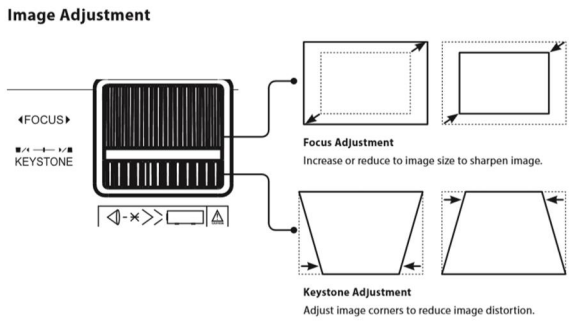

HOW CAN I ADJUST IMAGES?
CAN THIS PROJECTOR CONNECT TO A TABLET/SMARTPHONE THROUGH BLUETOOTH?
You cannot project the screen with Bluetooth. Bluetooth technology does not stream video or image, it
streams audio. You can use a HDMI adaptor to connect your tablet/smartphone to the projector. Please
contact your tablet/smartphone manufacturer’s customer service to find the best HDMI adaptor for
your device.
This unit has a Bluetooth transmitter. It can transmit the audio to an external Bluetooth speaker or
headphone/earbud. (The PJ308 has built-in full range speakers. However, you can also connect external
speakers for more sound options.)
HOW CAN I CONNECT DEVICES TO THIS PROJECTOR TO WATCH MOVIES, VIDEOS, etc.?
To connect devices to this projector to project images, videos, movies, games etc. you can use below connection option according to the device you would like to connect.
HDMI
HDMI offers superior sound and picture quality and is the easiest way to play media from a computer, laptop, DVD/Blu-Ray player, cable box, gaming console, streaming device, or another device with an HDMI output. Requires an HDMI cable (not included) and a device with an HDMI output.
1. Using an HDMI cable, connect the HDMI 1 or 2 input on the projector to the HDMI output on your media player.
2. Set the projector's Source to the connected HDMI input and use the controls on the connected device to select and play media.
Note: You can use an HDMI adaptor to connect your smartphone/tablet to this unit. Please contact your smartphone or tablet manufacturer’s customer service for the appropriate HDMI adaptor for your device.
Audio/Video Input
Requires a 3.5mm to RCA audio/video cable (included). This connection can be used with media players that have RCA stereo audio outputs and composite video output, such as DVD players, cable boxes etc.
1. Connect the 3.5mm to RCA audio/video cable to the AV input on the unit.
2. Connect the 3.5mm to RCA audio/video cable to the RCA stereo audio outputs and composite video output on the media player.
3. Set the projector's Source to AV and use the controls on the connected player to select and play media.
Computer Video (VGA)
Note: VGA connections do not support audio. You will need to use the computer's speakers to hear audio.
Requires a VGA cable (not included) and a desktop PC or laptop with a VGA output.
1. Using a VGA cable, connect the VGA input on the projector to the VGA output on your computer.
2. Set the projector's Source to PC and use the controls on the computer to select and play media.
MicroSD & USB Storage Devices
Supports MicroSD cards and USB drives up to 32GB. Supports AVI, MOV file formats.
1. Load a USB drive into the USB Port or a MicroSD card to the MicroSD Card Slot.
2. Set the Source to Media Player, then use the Arrow buttons to select "C:Drive" or "D:Drive" (C:Drive is the SD card, D:Drive is the USB).
3. Use the Arrow buttons to select Music/Photo/Movie, then press the OK button to begin playing content from the connected storage device.
