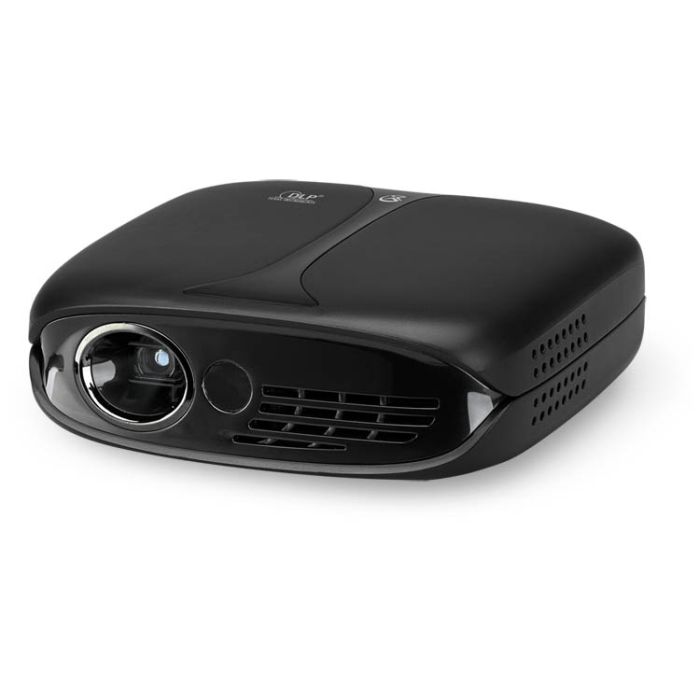

Micro Projector (PJ809B)

Recreate a drive-in movie experience anywhere with our micro projector with tripod (included). Easy setup lets you manually adjust the picture's focus, adjust the screen size up to 120 inches, and play your content via Wi-Fi mirroring, HDMI or USB. Connect your speakers to the audio output or use the built-in speaker to complete the experience.

DLP display technology
Supports: 480p, 720p, 1080i, 1080p
854 x 480 native resolution
Brightness: 1200 lumens
Resolution compatible 1920 x 1080 (16:9 aspect ratio)
Stream and mirror video and audio over Wi-Fi
HDMI input
USB port: supports video, photo, audio playback
3.5mm audio output
Micro-USB port for battery recharge
Up to 120-inch viewable screen size
LED bulb with 20,000 hour life
Display distance: up to 8.5 feet
Low battery indicator
Focus adjust
Digital volume control
Built-in speaker
On/off switch
DC battery power: built-in rechargeable battery
Battery life: ~80 minutes at full brightness, ~120 minutes in energy saving brightness mode
Charge time: 6-7 hours
Dimensions: 4.3 x 3.9 x 1.54"

INCLUDES

Tripod
Remote control: requires 2 AAA batteries (not included)
HDMI cable
Micro-USB to USB cable
AC/DC power adapter
90-Day Limited Warranty
User's guide

CAN I CONNECT HEADPHONEA OR A SPEAKER TO THIS UNIT?

Yes, this unit has a Headphone jack (audio out). You can use the included 3.5mm to RCA stereo cable, or your own 3.5mm Aux cable to connect an external speaker or headphones to the Headphone Jack on the projector. The projector will automatically detect the connection and the audio will be heard from the connected speaker, headphones, etc.

The PJ809B has a built-in speaker. However, you can also connect external speakers or
headphones/earbuds for more sound options.

HOW CAN I CONNECT MY SMARTPHONE TO THIS UNIT TO WATCH VIDEOS?

You can use an HDMI adaptor to connect your phone to this unit. Please contact your smartphone manufacturer’s customer service for the appropriate HDMI adaptor for your phone.

You can use Miracast or iOS Cast to connect your smartphone to this unit. Not all media apps or
streaming services support screen casting via Miracast or iOS cast.

You cannot use Bluetooth to watch videos on this projector.

DOES THIS PROJECTOR HAVE APPS?

This projector has Koala TV and YouTube app. To use these apps you’ll need to connect the projector to your Wi-Fi network.

HOW CAN I CONNECT THE PROJECTOR TO A WI-FI NETWORK?

Connecting to a Wi-Fi Network

• From the Main Menu, choose Setup.
• Under the Network Menu, select Wi-Fi > Scan.
• Select your Wi-Fi network from the list and enter your password using the remote. When
finished entering your password, press the Return button on the remote to exit the keyboard,
then press Confirm.

WHAT IS THE PLAYTIME OF THE BATTERY?

Rechargeable battery: 5200 mAh with approx. 80 minutes play time.

If using the internal battery only, be sure the battery is sufficiently charged. If using the power cable and external power source, be sure the cables are securely plugged into their sockets and ports, and the external power supply is powered on.

HOW CAN I CONNECT DEVICES TO THIS PROJECTOR TO WATCH MOVIES, VIDEOS, etc.?

Connecting via Miracast

To use screen casting with the projector, it must first be connected to a Wi-Fi network. Not all media apps or streaming services support screen casting via Miracast or iOS cast.

• From the Main Menu, select Miracast. Note: Devices and the projector must be connected to
the same network.
• Open the screen casting display function of the Android device you wish to connect. Note: This
may be listed under different names depending on the particular Android device. For example,
Miracast, SmartView, Vistacast.
• Select the projector from the list of available devices. The projector will display the image from
your Android device when successfully connected.

Connecting via iOS Cast

To use screen casting with the projector, it must first be connected to a Wi-Fi network. Not all media apps or streaming services support screen casting via Miracast or iOS cast.

• Select iOS Cast from the Main Menu. Note: Devices and the projector must be connected to the
same network.
• Open the Control Center of the iOS device and select Screen Mirroring.
• Select the projector from the list of available devices. The projector will display the image from
your Apple device when successfully connected.

Devices with an HDMI Output

HDMI offers superior sound and picture quality and is the easiest way to play media from a computer, laptop, DVD/Blu-Ray player, cable box, gaming console, streaming device, or another device with an HDMI output. Requires an HDMI cable (included) and a device with an HDMI output.

• Using an HDMI cable, connect the HDMI input on the projector to the HDMI output on a
compatible media player.
• From the Main Menu, select HDMI. Note: If connecting to a PC, it may help to change the
display resolution to 1024x768.

USB Drive

• Connect a USB drive to the USB port on the rear of the unit.
• From the Main Menu, select Media, then select Movie, Music, or Photo, depending on the type
of media on the USB drive.

Image Format: JPG, JPEG, BMP, PNG
Audio Format: MP3, WMA, MP2, OGG, M4A, MA4, FLAC, 3GP, WAV, M3U, RM, WMV
Video Format: MP4, MOV, 3GP, AVI, FLV, ISO, M2TS, MKV, MPG, RMVB, TP, TRP, TS,
MWV, VOB, DAT, ASF.H.265

• Use the remote to select and begin playing files. Press Menu to access on-screen play controls
and options.
